ChronoDot Breakout Board

The ChronoDot DS3231 breakout board didn’t arrive over the weekend like I had hoped. I had to wait a few more days for it. Delays! Delays! Delays!

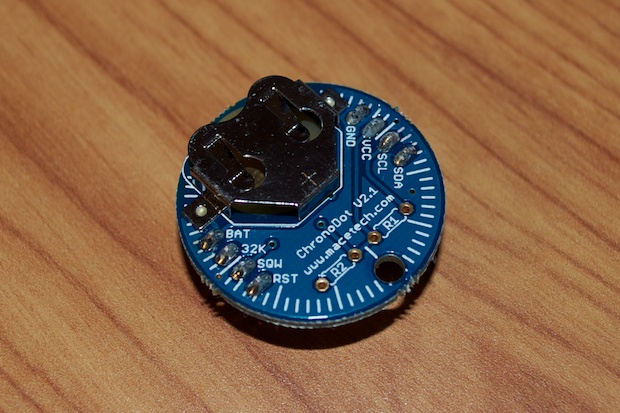

chronodot_001

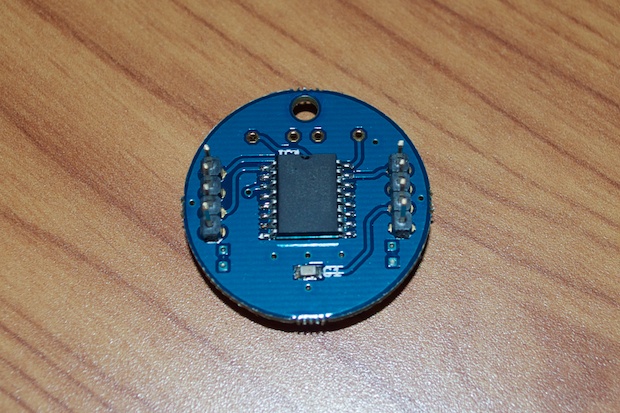

chronodot_002

There was no assembly required, so I could just pop it in my breadboard and get right down to the code.

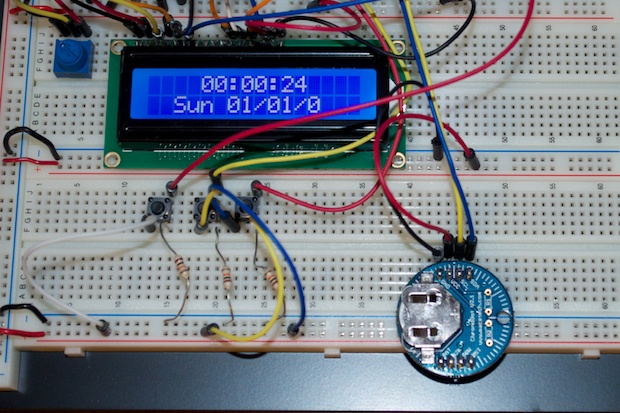

chronodot_005

It basically worked right out of the box with the RTC library. The clock started ticking away as soon as I powered it up.

I did tweak the code anyway. After tinkering around with it, I found a much better way of running my main loop. The clock runs a lot smoother now. I ran it for twelve hours sitting next to my iPhone and it’s pretty much spot on to the millisecond. So it looks like I did a good job of eliminating any delays.

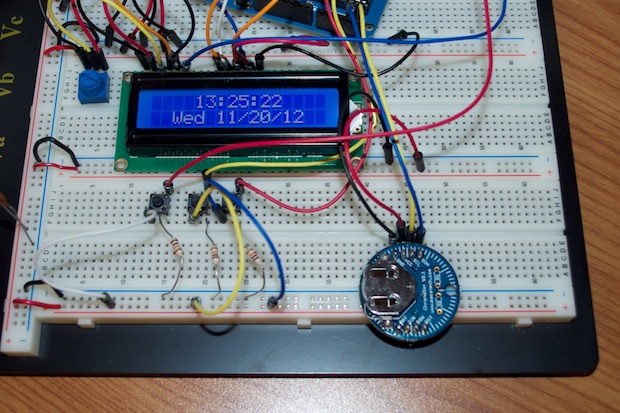

chronodot_006

I think I’m pretty much finished with the PCB too. I just have to give it one last look-over and then I can submit it. The DS3231s I ordered from eBay are en route from China. I have all the other pieces already.

Everything is starting to come together. I can’t wait to finish it!
