Arduino LCD Clock PCB Complete

My Arduino LCD Clock PCB is complete and ready to be fabbed.

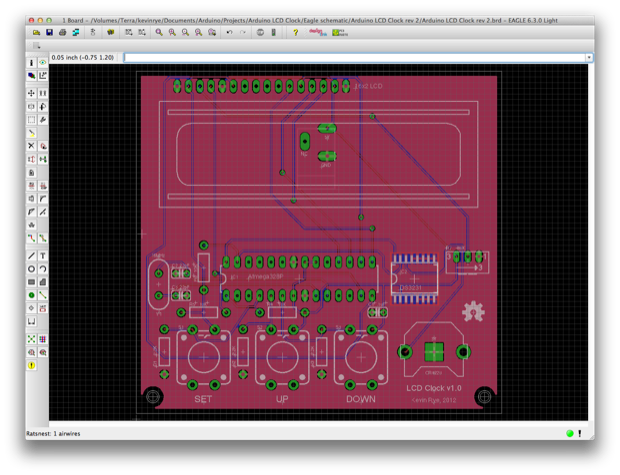

Arduino LCD Clock PCB final

The boards are going to look awesome once they come in from OSH Park. They make them in purple with gold plated solder masks. They’re pretty unique looking.

OSH Park’s upload tool is great. You upload your Eagle file and it parses all the layers and immediately generates a preview of exactly what your board is going to look like.

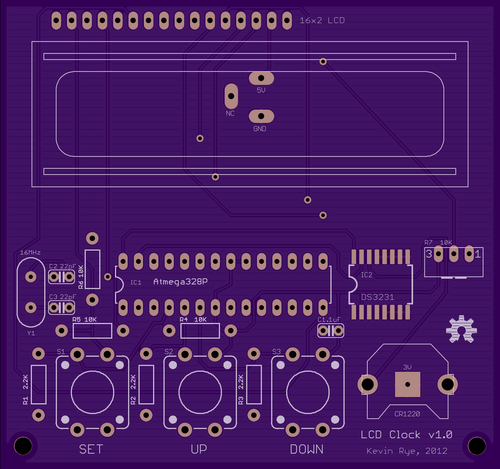

boardTop

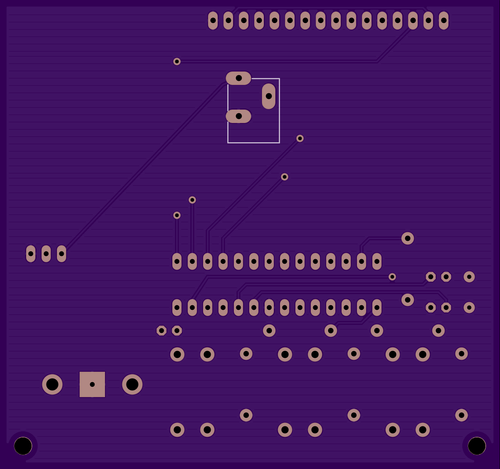

boardBottom

They give you the price right there and then. If you’re happy with the way it looks, you submit it and pay. Boom. You’re done. 3 boards for $50 bucks.

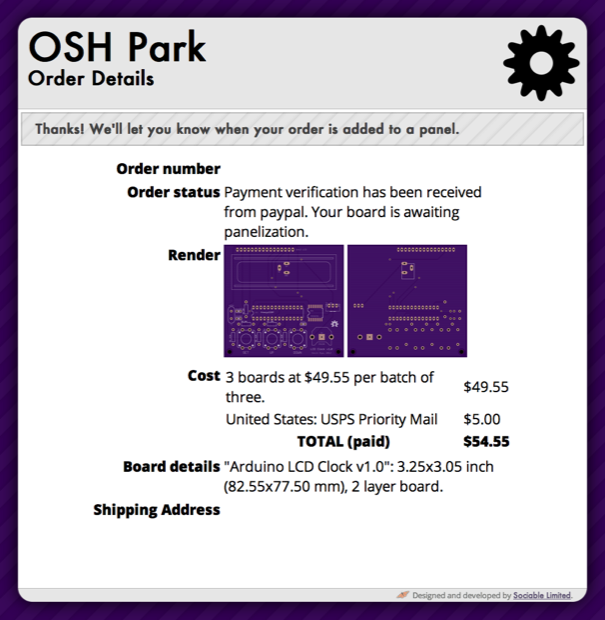

OSHParkConfirmation

I can’t wait to put it together!
